焊接變位機在使用中要特別注意保養，尤其是對其中的焊接卡盤的保養，卡盤的作用很大，所以一定不要忘記對它的維護工作，另外，還要做好對設備結構的檢驗工作，山東自動焊接設備廠家接下來為大家一一分析一下。

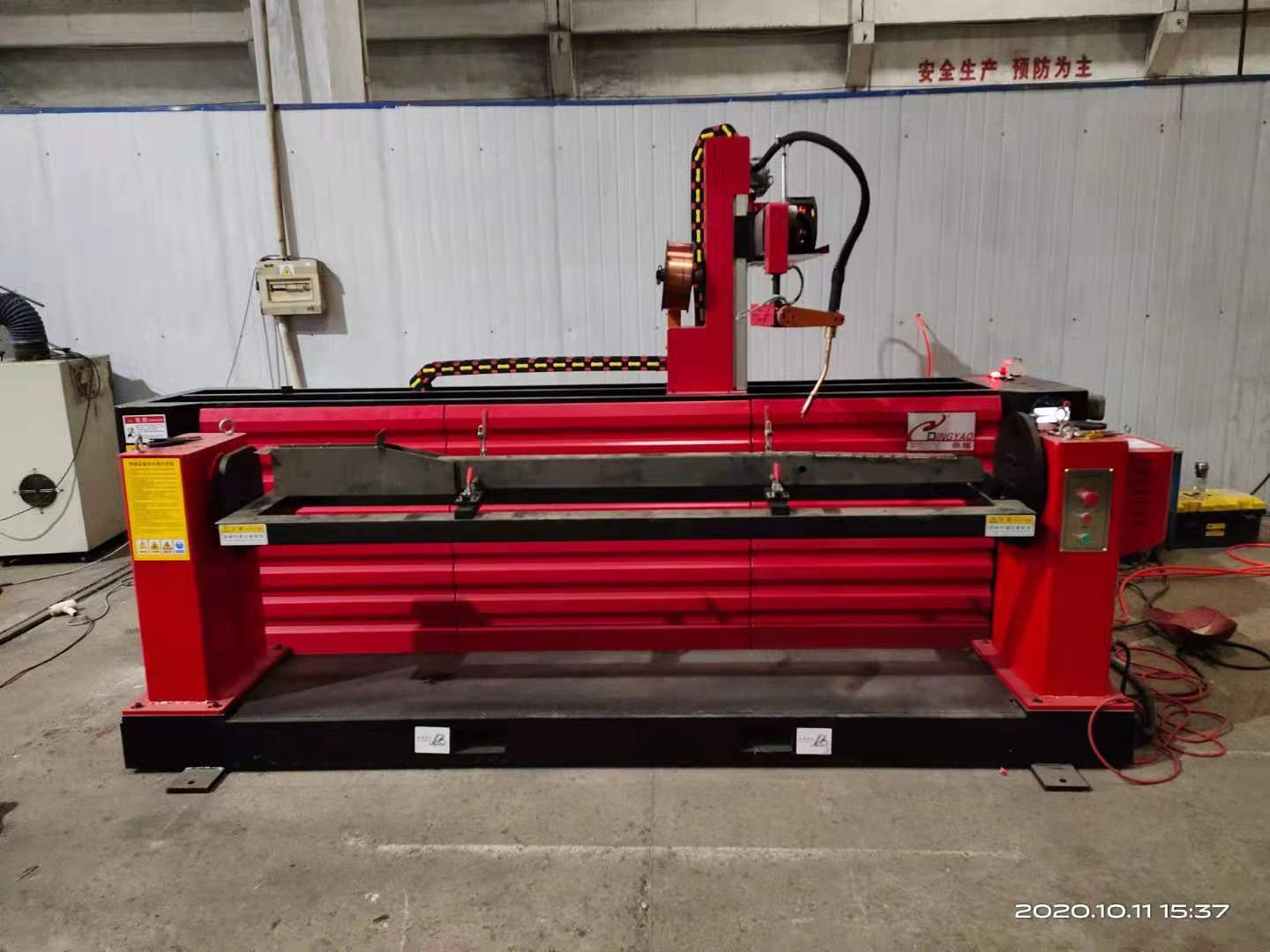

Special attention should be paid to the maintenance of the welding positioner in use, especially the maintenance of the welding chuck. The chuck plays a very important role, so we must not forget to maintain it. In addition, we should also do a good job in the inspection of the equipment structure. The Shandong automatic welding equipment manufacturer will analyze it one by one.

1、在卡盤使用完成后，一定要用風槍等工具對卡盤本體以及滑道表面進行清潔，這樣可以保證卡盤長時間使用之后，仍具有良好的精度，所以對卡盤的定期潤滑工作很重要。

1. After the chuck is used, the chuck body and slide surface must be cleaned with tools such as an air gun, which can ensure that the chuck still has good accuracy after a long time of use, so regular lubrication of the chuck is very important.

2、每天少打一次二硫化鉬油脂(顏色為黑色)，將油脂打入卡盤油嘴內，直到油脂溢出夾爪面或卡盤內孔處(內孔保護套與連結螺帽處)。

2. Apply molybdenum disulfide grease (black in color) at least once a day, and inject the grease into the chuck nozzle until the grease overflows the jaw face or the inner hole of the chuck (the inner hole protective sleeve and the connecting nut).

3、為防止卡盤內部生銹，加持力降低，無法夾緊工件，因此盡量使用具有防銹效果的切削油，使用切削油可以預防卡盤內部生銹。

3. In order to prevent the chuck from rusting inside, the holding force is reduced, and the workpiece cannot be clamped, so try to use cutting oil with anti rust effect. The use of cutting oil can prevent the chuck from rusting inside.

4、作業完成時一定要以風槍或類似工具，來清潔卡盤本體及滑道面。

4. When the operation is completed, air gun or similar tools must be used to clean the chuck body and slide surface.

5、焊接卡盤少每過6個月拆下清洗，保持夾爪滑動面干凈并給予潤滑，使卡盤壽命增長。

5. The welding chuck shall be disassembled and cleaned at least every 6 months to keep the sliding surface of the jaw clean and lubricated, so as to increase the service life of the chuck.

6、檢查各零部件有無破裂及磨損的情況，削鑄鐵少每2個月一次來清潔，如遇嚴重有損零件應立刻換個新品。

6. Check whether all parts are cracked and worn. Clean the cast iron at least once every 2 months. In case of serious damage, replace it with a new one immediately.

7、針對不同工件一定要使用不同夾持方式，若是使用它去夾不規則工件會造成卡盤損壞。

7. Different clamping methods must be used for different workpieces. If it is used to clamp irregular workpieces, the chuck will be damaged.

8、當卡盤壓力不正常時，讓卡盤處于高壓力下將工件夾住，這將會降低卡盤使用壽命，所以當發現卡盤間隙過大時一定要立即換一個新的卡盤。

8. When the chuck pressure is abnormal, let the chuck clamp the workpiece under high pressure, which will reduce the service life of the chuck. Therefore, when it is found that the chuck clearance is too large, a new chuck must be replaced immediately.

卡盤的保養方法基本上就是以上八點內容，為了延長焊接變位機的使用壽命，就要在平時做好檢查保養工作，尤其是對卡盤的保養，另外一旦出現問題也要及時進行維修，以免影響使用。更多相關內容就來我們網站http://meangen.com進行咨詢了解！

The maintenance method of the chuck is basically the above eight points. In order to prolong the service life of the welding positioner, it is necessary to do a good job of inspection and maintenance at ordinary times, especially the maintenance of the chuck. In addition, once there is a problem, it is also necessary to timely repair, so as not to affect the use. More relevant content will come to our website http://meangen.com Ask about it!
